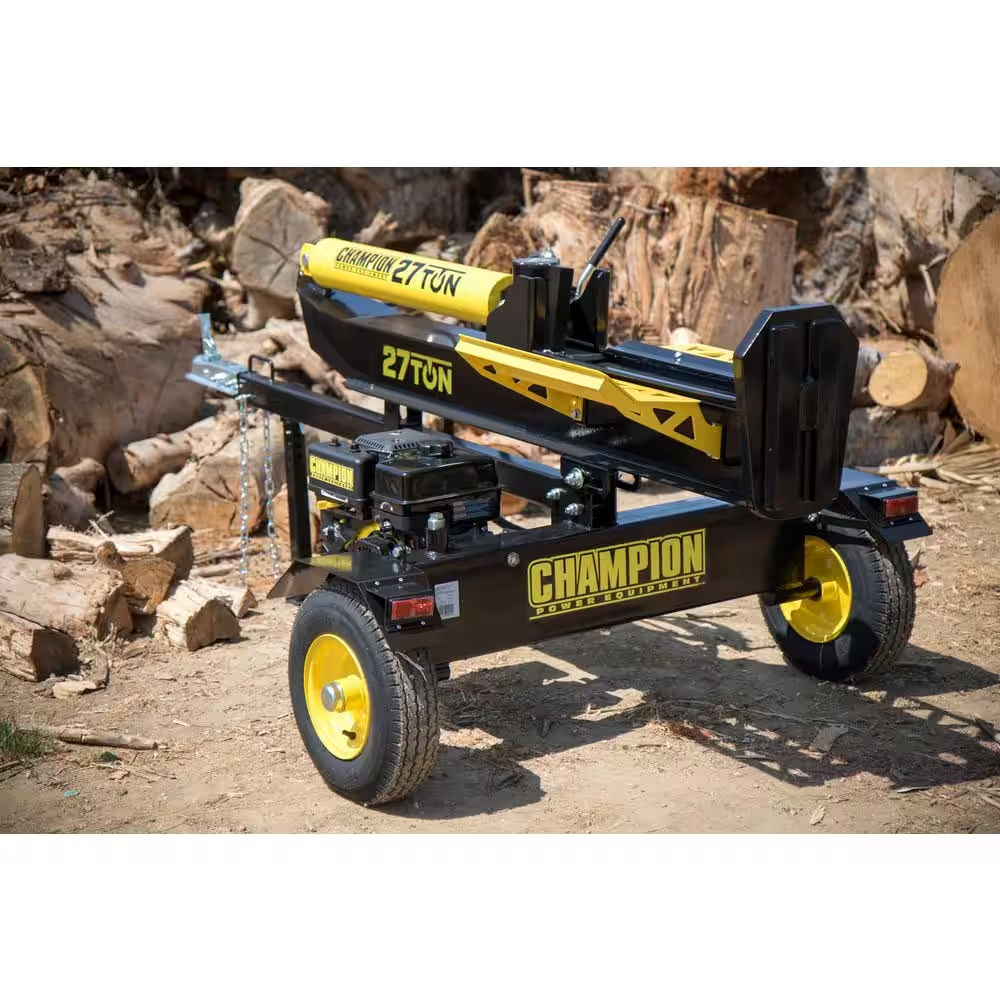

27 Ton 224 cc Gas Powered Hydraulic Wood Log Splitter with Vertical/Horizontal Operation and Auto Return



  • Towable up to 45 mph with 16 in. DOT-approved tires
  • Split wood with 11 second cycle time and auto return

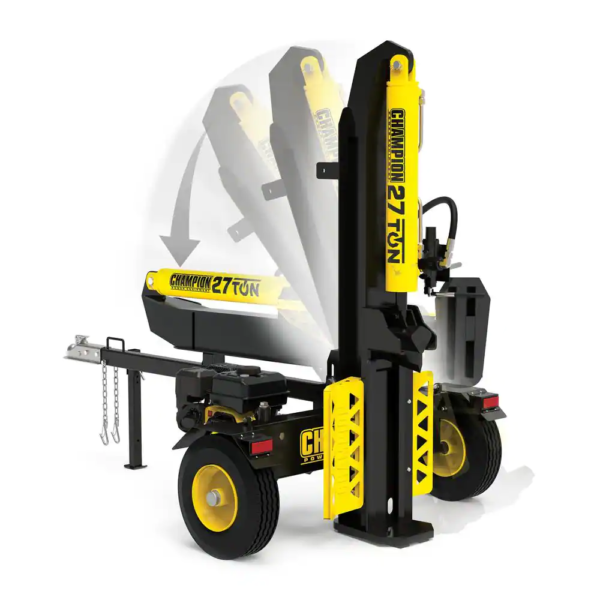

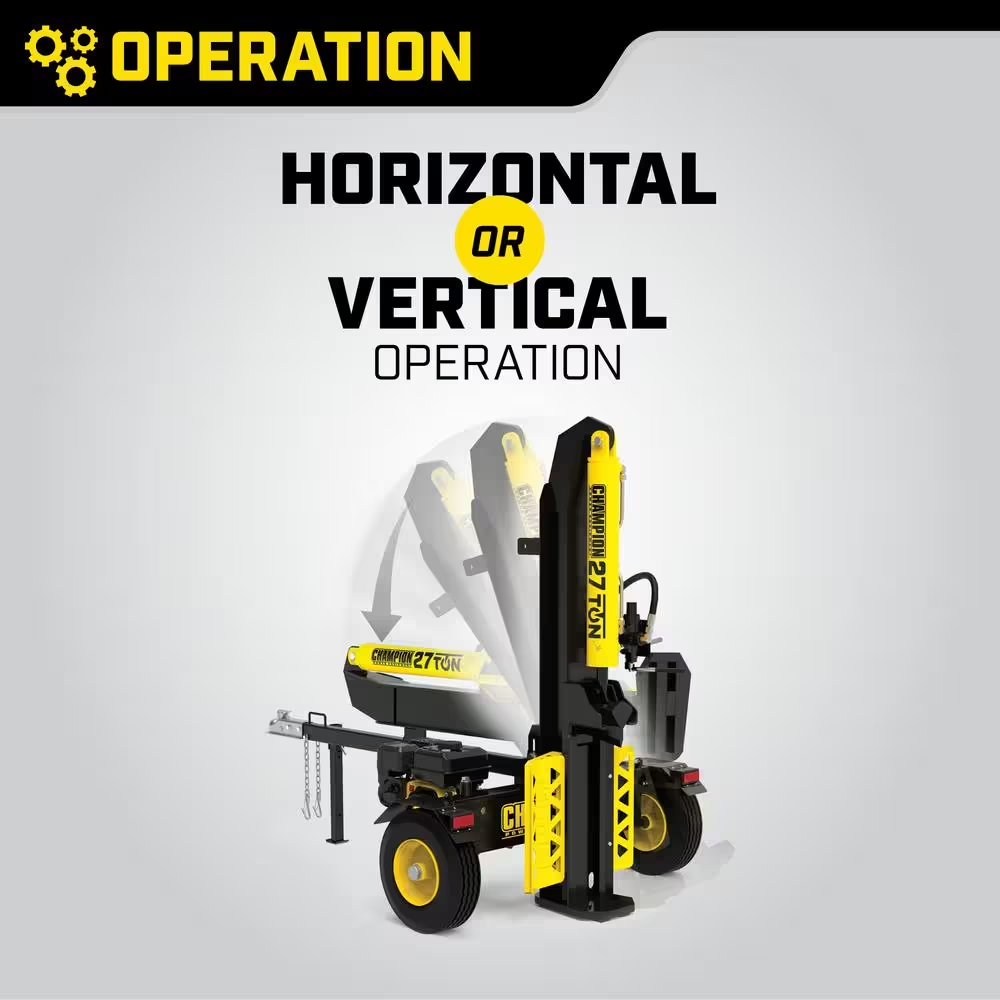

  • Converts from horizontal to vertical wood splitting in seconds

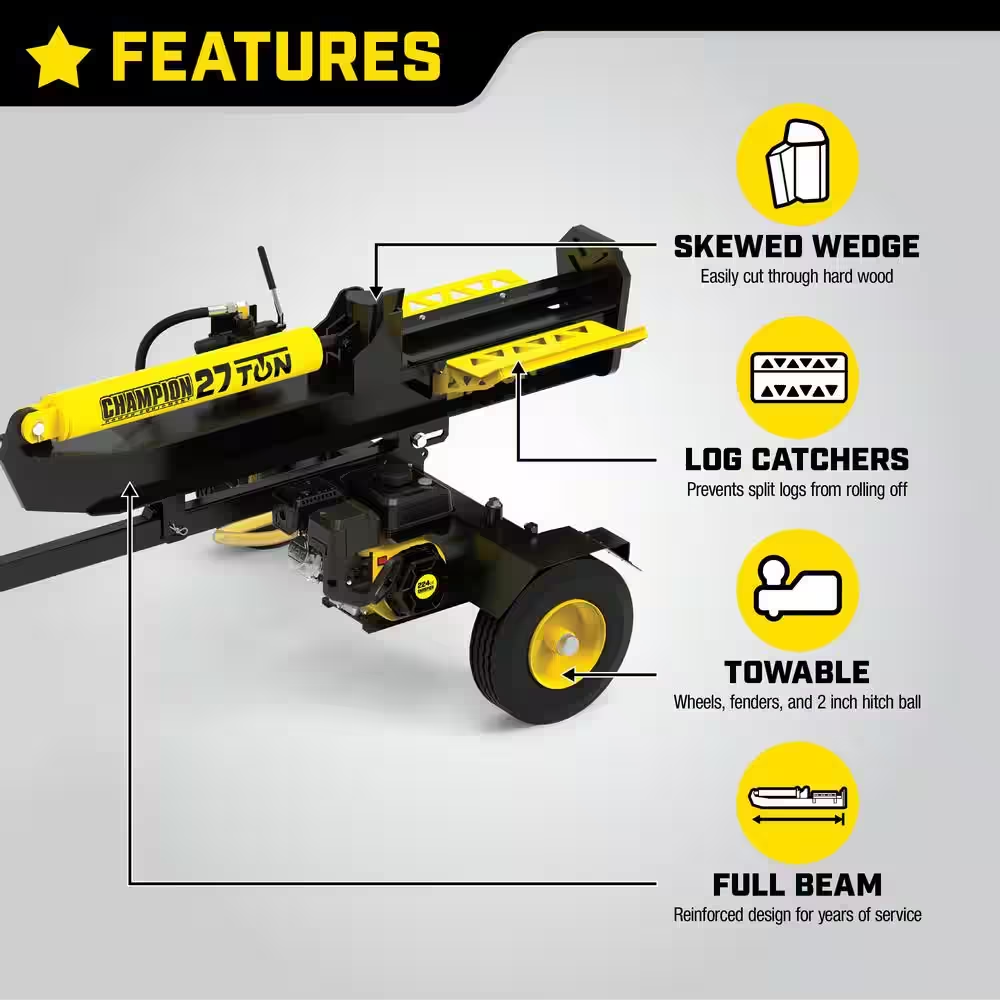

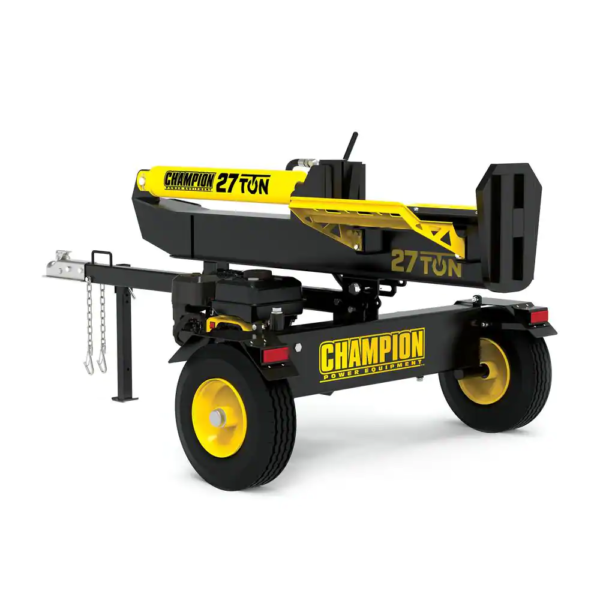

The Champion Power Equipment 100424 27-Ton Horizontal/Vertical Full Beam Hydraulic Wood Log Splitter offers relief from the back-breaking work of splitting logs. A powerful Champion 224cc single-cylinder OHV engine features, cast-iron sleeve, 0.9 Gal. fuel tank, 0.6 Qt. oil capacity (recommended 10W-30) and low-oil shutoff sensor. Never struggle with large wood logs again, as 3 simple steps converts the splitter from horizontal to vertical. Twenty-seven tons of splitting force power your needs to handle wood logs up to 24 in. L, weighing up to 100 lbs. Hydraulic oil system has a 4.5 Gal. capacity and operates at 11 GPM. Capable of over 300 cycles per-hour with an 11-second cycle time, expanded operator area and dependable auto-return valve. Log catchers keep the split wood within easy reach. A 2-stage gear pump reliably adjusts flow and pressure to increase productivity. Fits in most truck beds or towable with DOT-approved wheels for up to 45 mph, a 2 in. ball hitch coupler and extended tongue that will fit most ATV/UTV towing applications. Hassle free with included oil funnel, 10W-30 engine oil and hydraulic oil. (Note: unit comes assembled when purchased in-store, units ordered online come unassembled even if picked up in-store). EPA certified and CARB compliant. Buy with confidence – our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and free lifetime technical support.
  • Need help with service or repair? Champion Power Equipment is available to help 24 hours a day, 7 days a week. Call us at 1-877-338-0999.

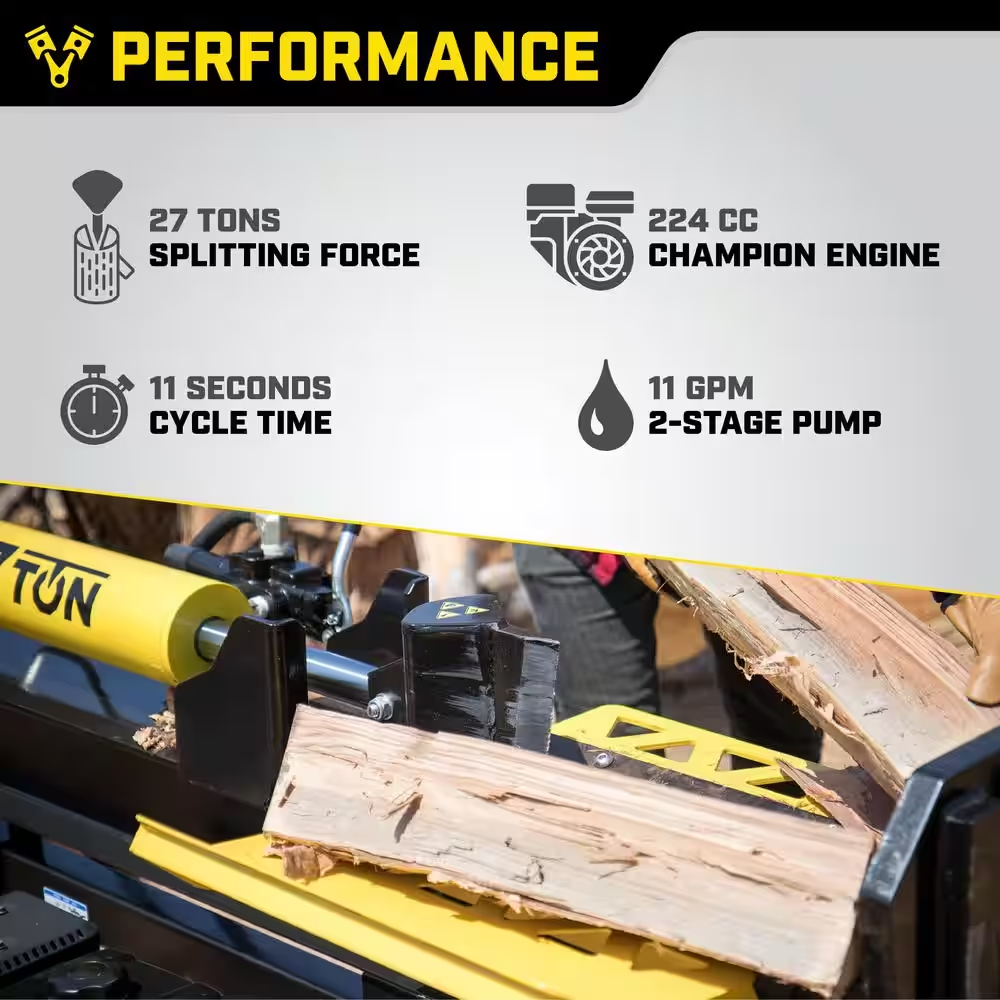

  • 27 tons of wood splitting capacity with a large 224 cc champion single-cylinder OHV engine

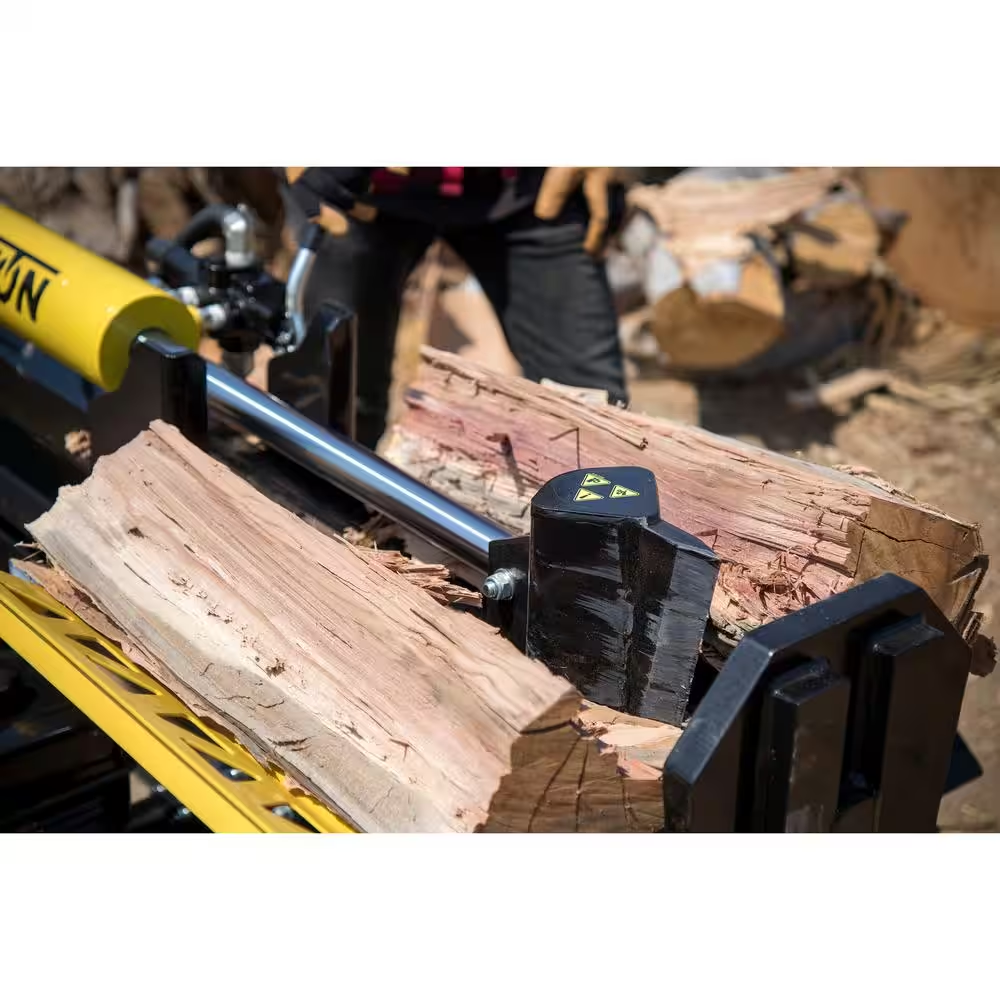

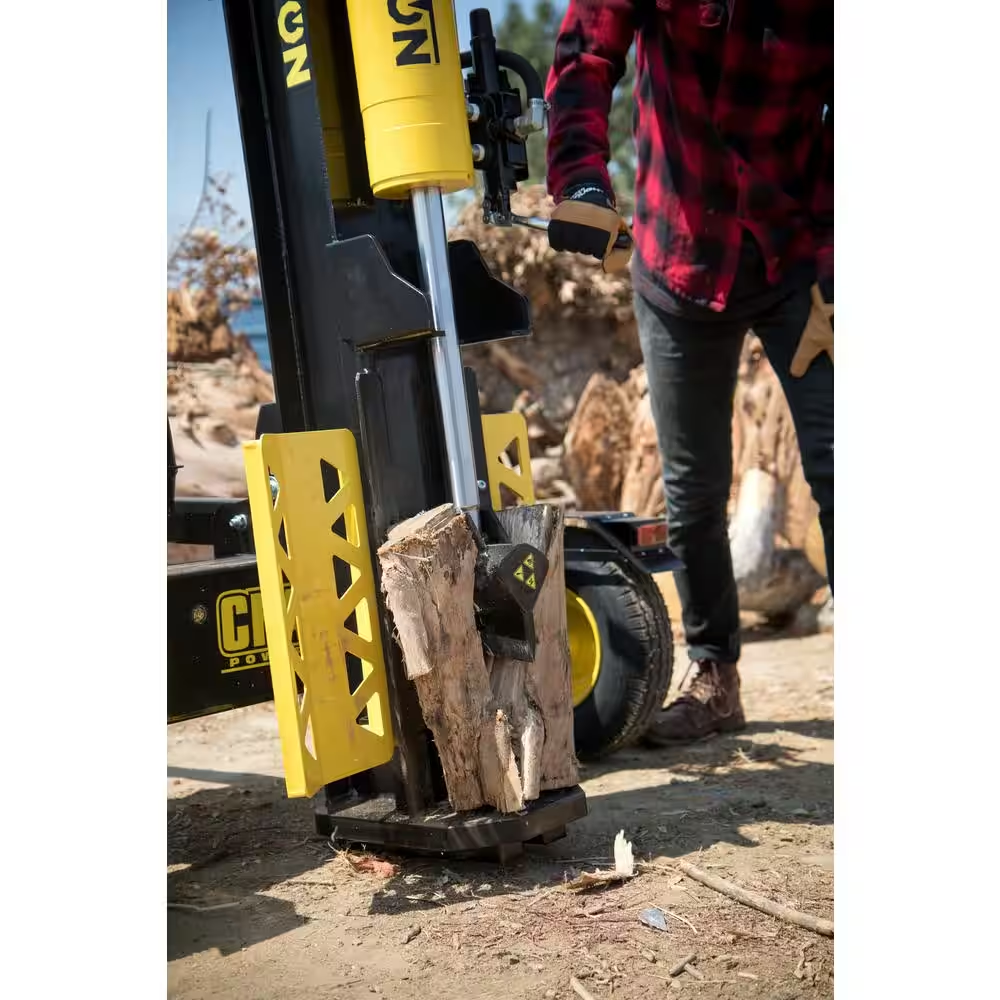

  • Operate horizontally or vertically, allowing you to handle large, heavy wood logs with ease
  • Expanded operator area and dependable auto-return valve capable of over 300 cycles per-hour

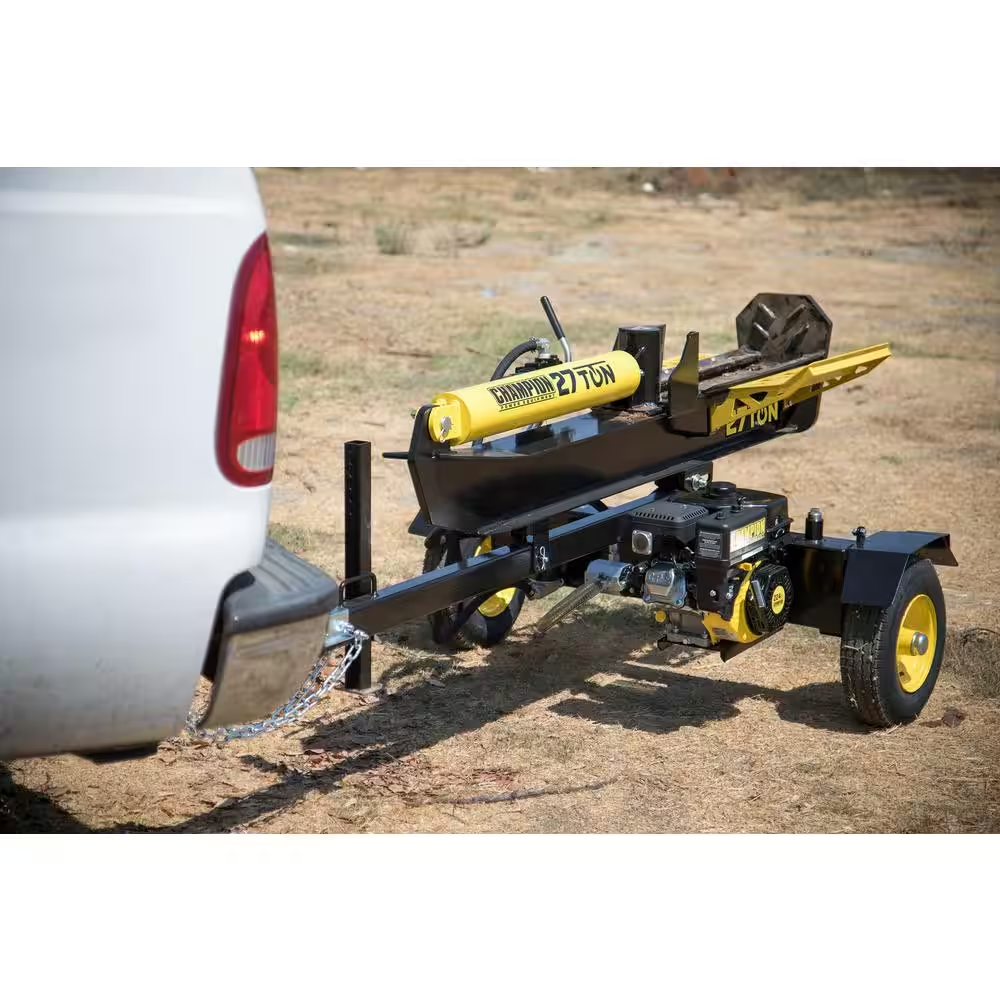

  • Towable and fits most ATV/UTV towing applications with an extended tongue and 2 in. ball hitch coupler
  • Champion support includes 2-year limited warranty with free lifetime technical support from dedicated experts
  • Champion has-years of experience providing dependable and durable power equipment designed and engineered in the US for the North American and world markets
  • Champion products are the standard of performance excellence – for work, for play, for home
  • We make the power that makes your life easier, Champion demands excellence from their dedicated technicians and service network ensuring that you will receive world-class service and response wherever and whenever you need it

Additional information

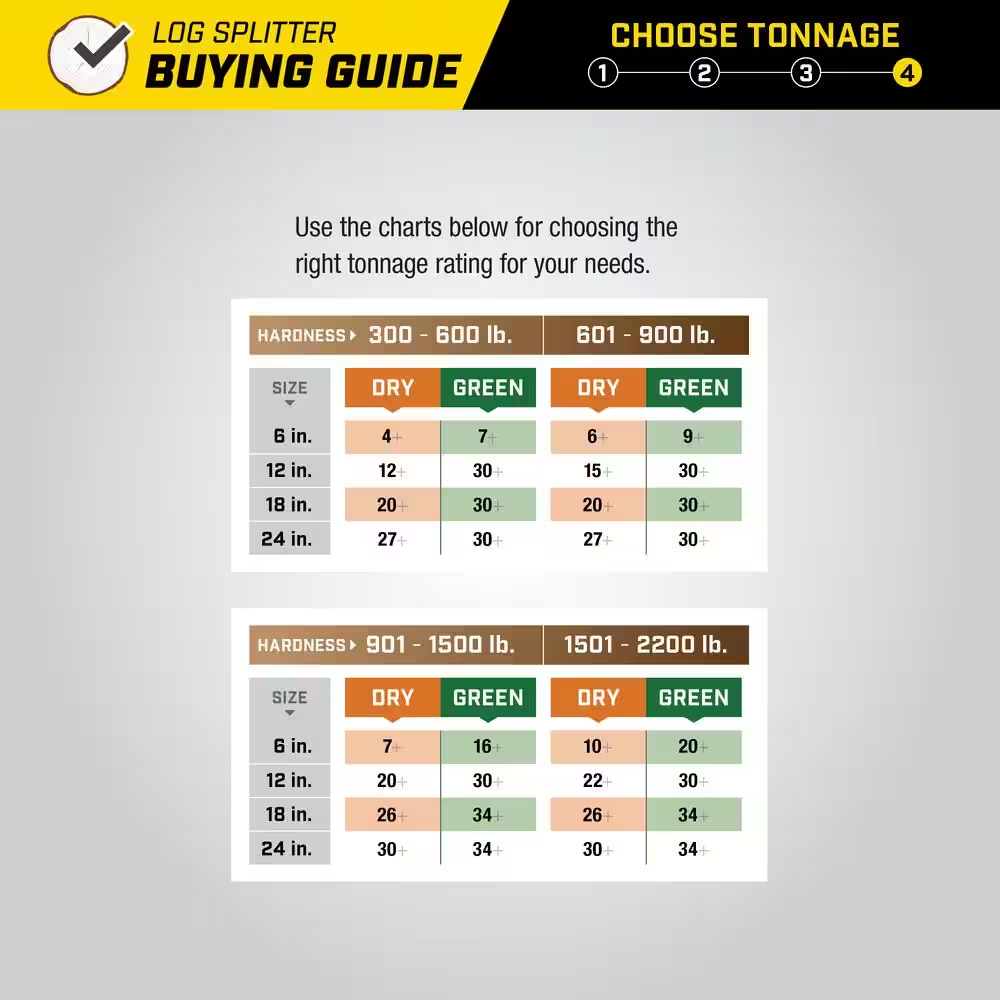

Splitting force (tons)

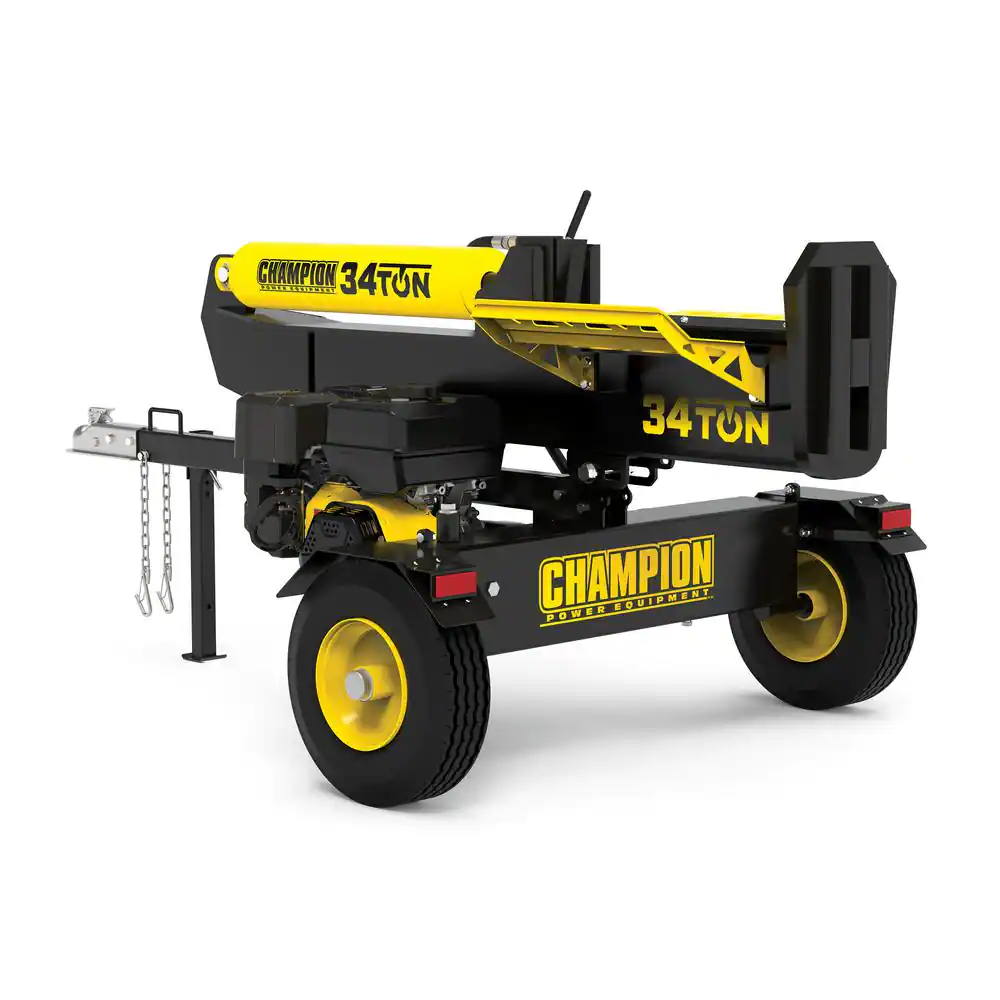

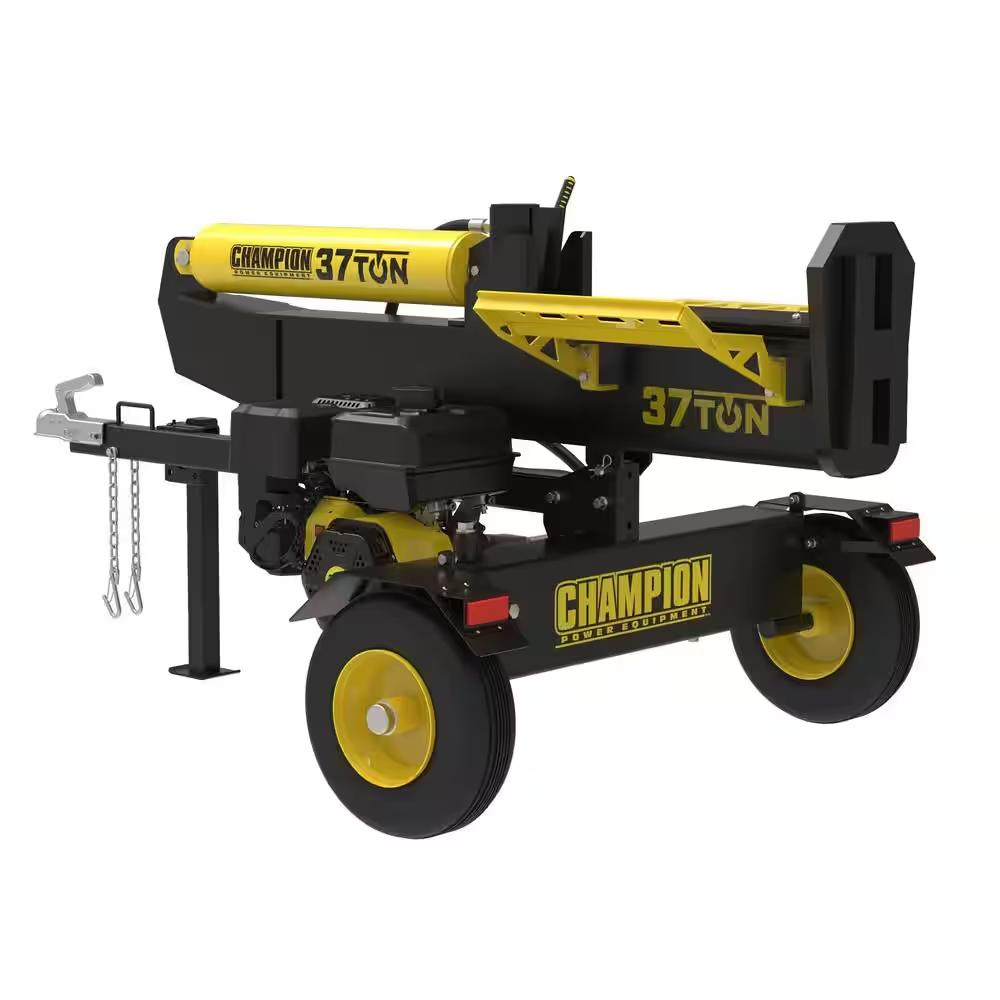

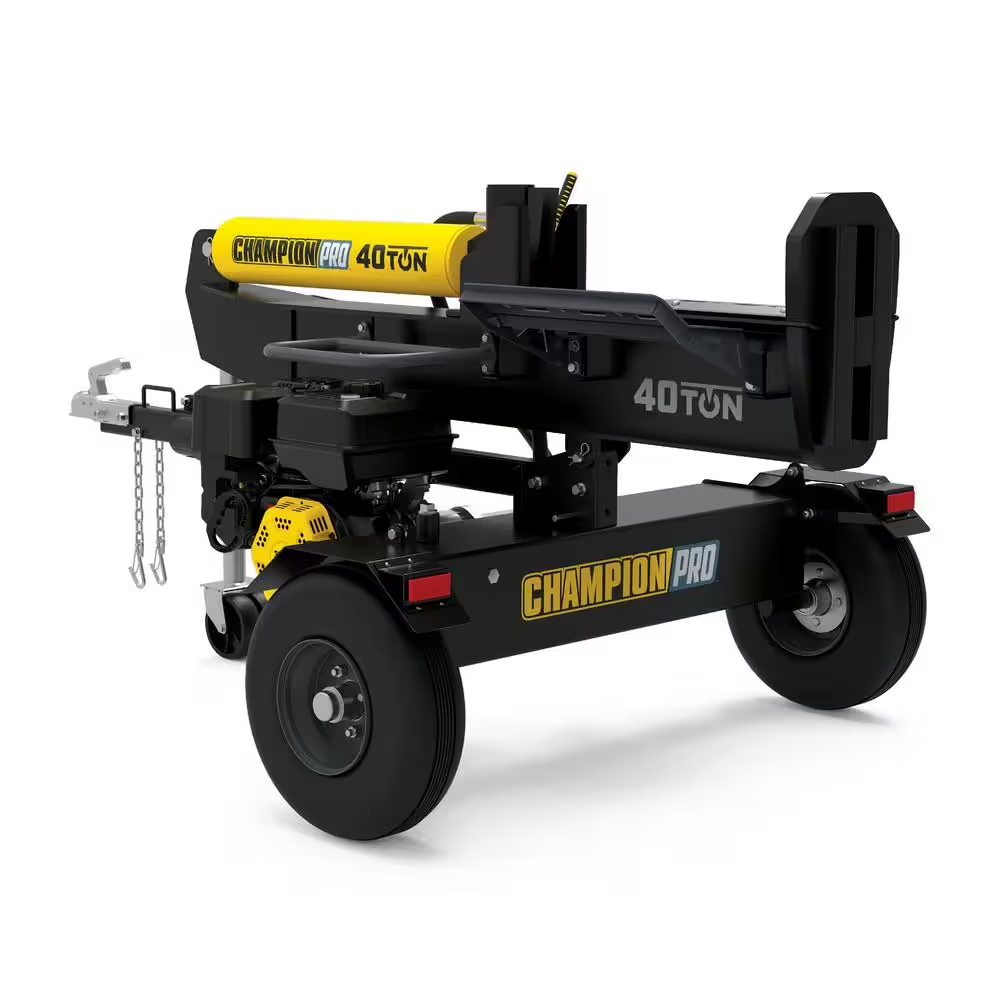

40 Ton, 27 Ton, 34 Ton, 37 Ton

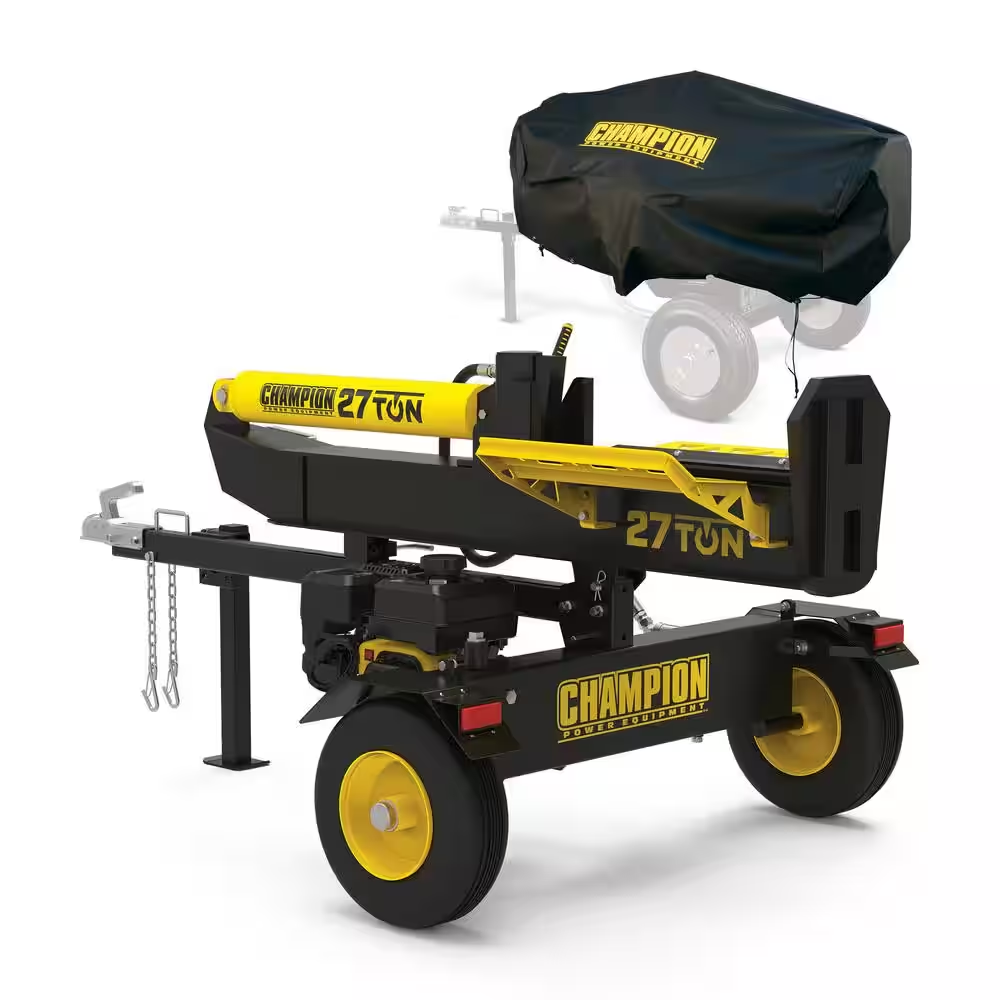

Includes Storage Cover

Without Storage Cover, With Storage Cover
